Airport perimeter 358 security mesh durable for military sites ISO SGS approved

Ask Lasest Price
Brand Name :	Alon
Model Number :	DQ-WF2
Certification :	ISO SGS
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20000 square meter one week
Delivery Time :	10 days also according to the order

Add to Cart

Product Details
Company Profile

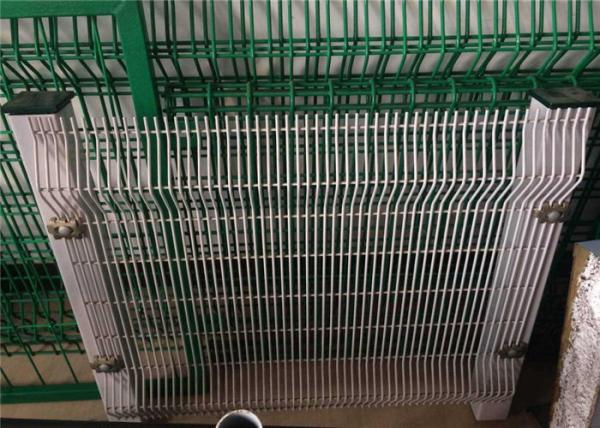

Airport perimeter 358 security mesh durable for military sites ISO SGS approved

Anti-cutting steel airport perimeter 358 security mesh welded wire mesh panels

Description:

358 mesh – as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb

Specification:

specification for 358 Security System

MESH		PANELS	POST
Wire	Opening	Height*Width	Section	O/A Length	Total Number of Fixings
mm	mm	mm	mm	mm	Inters-1 Clamp Bar	Comers-2 Clamp Bar
4	12.776.2(3"1/2")	2007*2515	60602.5	2700	7	14
4	12.776.2(3"1/2")	2004*2515	60602.5	3100	9	18
4	12.776.2(3"1/2")	2997*2515	80802.5	3800	11	22
4	12.776.2(3"1/2")	3302*2515	80802.5	4200	12	24
4	12.776.2(3"1/2")	3607*2515	100603	4500	13	26
4	12.776.2(3"1/2")	3607*2515	1001003	4500	13	26

specification for 358 Maximum Security System

MESH		PANELS	POST
Wire	Opening	Height*Width	Section	O/A Length	Total Number of Fixings
mm	mm	mm	mm	mm	Inters-1 Clamp Bar	Comers-2 Clamp Bar
4	12.776.2(3"1/2")	4204*2515	1001004	5200	15	30
4	12.776.2(3"1/2")	4496*2515	1001005	5500	16	32
4	12.776.2(3"1/2")	5207*2515	1201205	6200	18	36

The surface treatment

1)Hot dipped galvanized
Hot-dip galvanizing is the process of dipping fabricated steel in a bath of molten zinc to

form a tightly-bonded alloy coating that provides superior corrosion protection to steel.

Advantages of Hot Dip Galvanizing

*More cost effective for long term

*Long service life

*Low maintenance

*Corrosion resistant - a protective coat of armor

*Less inspection required on job sites

*Self healing (scratches and cuts in coating)

2)Electro-galvanized and Powder coated
Electric galvanizing takes place before manufacture the product. This generally results in a better appearance.

Powder coating is a dry finishing method in which electrically charged particles of pigmented resins are

sprayedonto a product, makes the product become colorful. We can do powder coated based on RAL color card.

Advantages of Electro-galvanized and Powder coated

*Economics

*Safety

*Environmental

*Saves money

*Elegant appearance

Feature:

1.Anti-climb:more small openings,no toe or finger holds.

2.Anti-cut:robust wir and welded joints make cutting very different
3. High-strength:the superior welding technique and process control create a stronger fusion between the wires.

Application:

1. Play ground anti-climb anti-cut high-strength
2.Prison
3. airport
4.Municipal
5. Greening
