Double Rod Welded Wire Fence Panels Height 1600mm Metal Wire Mesh Fence

Pvc coated twin wire Double rod welded wire 868 fence panel Height 1600mm With Square Post 50mm

656 welded wire mesh fence

Our 656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm, 3030mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated

868 welded wire mesh fence

868 twin wire mesh offers the same mesh panel as the 656, but with even greater strength by incorporating double 8mm horizontal with the single 6mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated

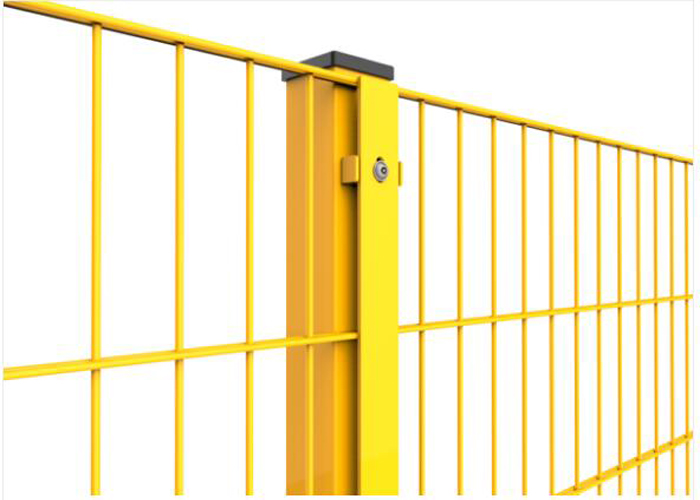

Fence Post:

system usually choose Square Post ( 60*60mm), Rectangular Post (80*60*2.5mm) with the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.

Type	Profile	Wall Thickness	Surface Treatment	Length	Rain hat
RHS post	60*40mm	2.0mm	Galvanized and Electrostatic Polyester coated	2400 2600 2800 3000 3500	Plastic or metal
RHS post	80*60mm	2.5mm
Peach post	70*100mm	1.5mm
SHS post	60*60mm	1.5mm,2.0mm, 2.5mm
SHS post	80*80mm	1.5mm,2.0mm, 2.5mm

Double Wire Fence Panel
Height x Width (Panel) mm	Mesh Size mm.	Wire Diameter			Post of Height mm
Height x Width (Panel) mm	Mesh Size mm.	Wire Dia mm	Wire Dia mm	Wire Dia mm	Post of Height mm
630*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1100
830*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1300
1030*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1500
1230*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1700
1430*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	1900
1630*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2100
1830*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2400
2030*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2600
2230*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	2800
2430*2500	50*200	8*2 + 6	6*2 + 5	6*2 + 4	3000

868 Doubel Wire Fence Panel Features:

Anti-cut-through, double wire mesh panels

Wide range of height options

Range of wire mesh sizes

RAL colours available
