Pvc Coated Doulble Weft 656 Wire Welded Fence 1.83X2.2Meter With
Round OD38MM Post
868 double wire fence is welded from 2 pieces of 8 mm horizontal
wire and 1 piece of 6 mm vertical wire.
We also manufacture 656 wire fence and 545 wire fence. In them, 868
wire fence is the most rigid and
sturdy mesh, the recommend sizes is 868 and 656 welded mesh panels.
Made from high quality low carbon
steel wire, the double wire mesh fence often used as a premier
fence for school play ground and industrial
or commercial premises fencing where a strong mesh fencing system
is required.
The double wire panel system is a flat panel, constructed from twin
wire 6mm/8 mm diameter horizontal
wires either side of a 4mm/5 mm/6mm diameter vertical wire creating
a strong rigid fence when fitted to
a RHS/SHS post.
Double Wire Welded Fence specification as follow:
| Wire Dia. | Mesh Size | Length | Height | Surface Treatment | Post Size | Common Colour | Fitting |
5/4/5mm 6/5/6mm | 50×200 | 2000 2200 2500 3000 | 1030 | Electric galvanized then powder coating Hot dip galvanized then powder coating | Peach Post: 50×70×1.2mm 70*100×1.2mm CM Post: 50×65×1.2mm 65×95×1.2mm Square Post: 50×50×1.5/2.0mm 60×60×1.5/2.0mm
| Green RAL6005 Black RAL9005 White RAL9010 Grey RAL7030 Red RAL3020 Yellow RAL1023 Blue RAL5017
| Steel Clips Plastic Clip Rain Hat |
| 1230 |
| 1530 |
| 1830 |
| 2030 |

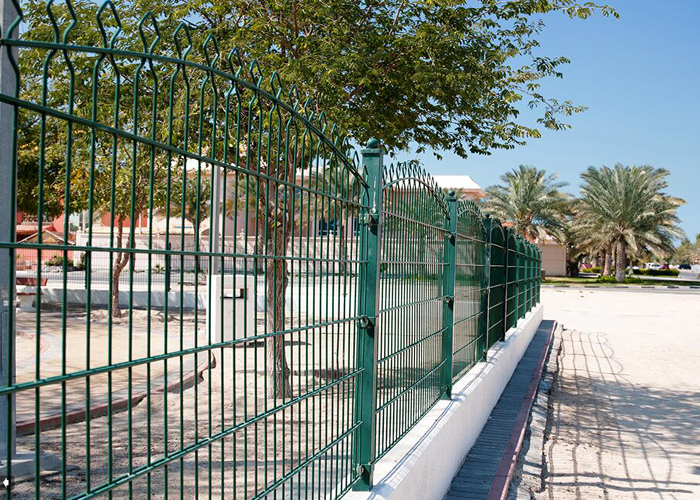

Double Wire Fence Panel Application:
Double wire fence panel is used for the protection of objects with
high security
requirements, for example, to protect nuclear and hydroelectric
power plants, airports, military
warehouses, stadiums, shopping malls, railway. It is also usually
as fencing wall for industry, public
and administrative buildings, supermarkets, schools, sports, parks,
and playgrounds facilities..
Double Wire Welded Fence Post Size
| Square post |
| Size | 40*60mm 60*60mm 80*80mm |
| Thickness | 1.2mm 1.5mm 2.0mm |
| Height | 1.8m 2.1m 2.3m 2.5m or as your request |
| Round post |
| Diameter | 38mm 40mm 42mm 48mm 60mm |
| Size | 1.2mm 1.5mm 2.0mm |
| Thickness | 1.8m 2.1m 2.3m 2.5m or as your request |
| Peach post |
| Size | 50*70mm 70*100mm |
| Thickness | 0.8mm 1.0mm 1.2mm |
| height | 1.8m 2.1m 2.3m 2.5m or as your request |
Double Weft Wire Fence Choice of colors:
Common colors
Dark Green RAL6005
Pure White RAL9010
Stone Grey RAL7030
Jet Black RAL9005
Anthracite Grey RAL7016
Other RAL colors are available
